WINDOW FRAME MAKING MACHINE

Published by Ruisheng@163 at April 4, 2023

Features and Advantages of Window Frame Making Machine

Ground pit/overground accumulating unit, non-stop hole punching unit, and flying tracking cutting and automatic stacking devices are available for the choice to improve production speed greatly.
Cassette type platform quick-change Machine base for multi-profile purposes is available for choice.
With fully automatic non-stop standard configurations, the working speed of these window frame making machines can reach 30m/min
Certified with Multi-Patents; CE Certified, EUROPEAN quality standard
Window frame-making machines in stock are available for prompt delivery.

Suitable material: Cold/hot Rolled Steel, Galvanized Steel

Thickness: 0.8-1.2/1.0 (mm)

Yield Strength: 230-300 (MPa)

Width: 300mm as profile requests

Decoiler	3t/5t/8t
leveling device
Ground pit/ overground accumulating unit	(optional)
Servo Feeding Device
Holes punching device
Ground pit/ overground accumulating unit	(optional)
Guiding device

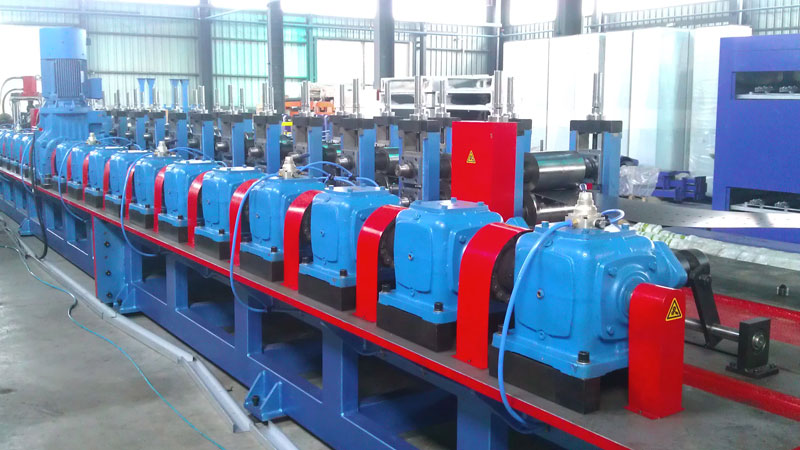

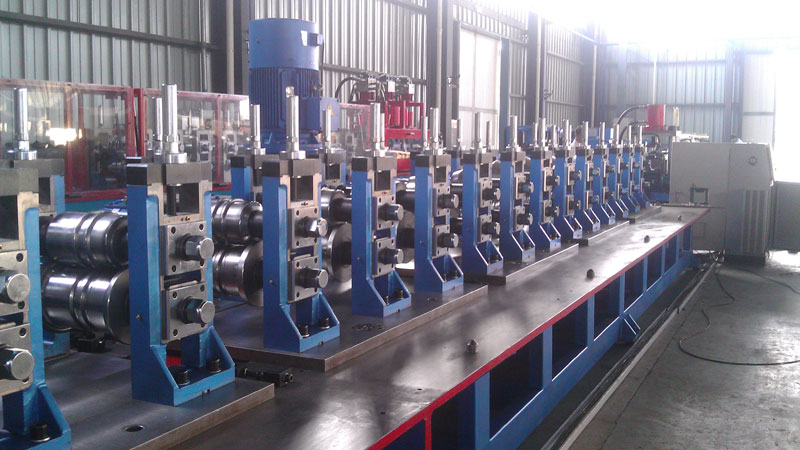

Roll forming system	20/30m/min
Safety cage	optional
Post cutting device	flying cutting, tracking cutting and stop to cut are available for choice
Output System	Manual supporter/ Automatic Stacker (optional)
Stack master	(Output direction) Lateral/Longitudinal (optional)
Hydraulic system	Power supply for holes punching /post-cutting system
Electric control system	MITSUBISH/ SIEMENSE/AMS/Omron (optional or as requested )

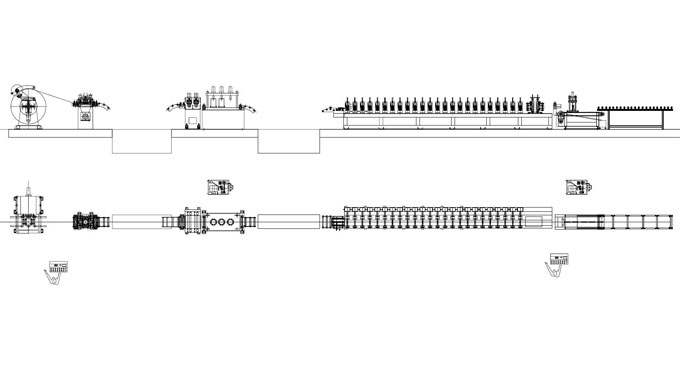

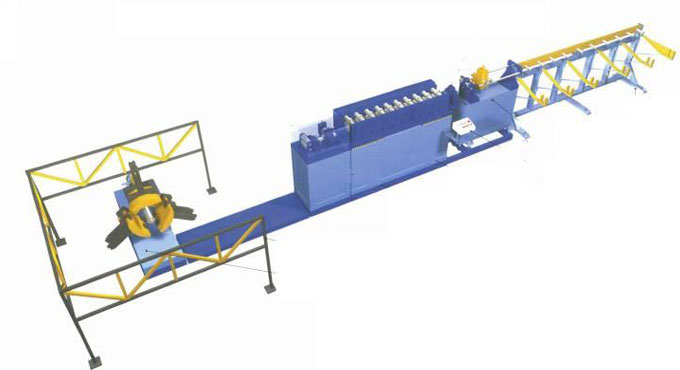

layout

Window Frame Making Machine

Window Frame Making Machine

Window Frame Making Machine

Machine Condition	Fully New, A Grade quality

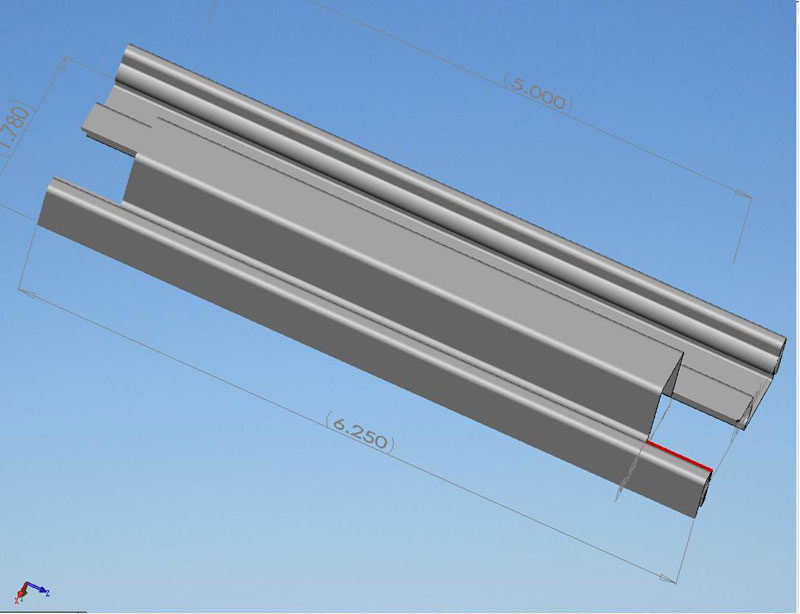

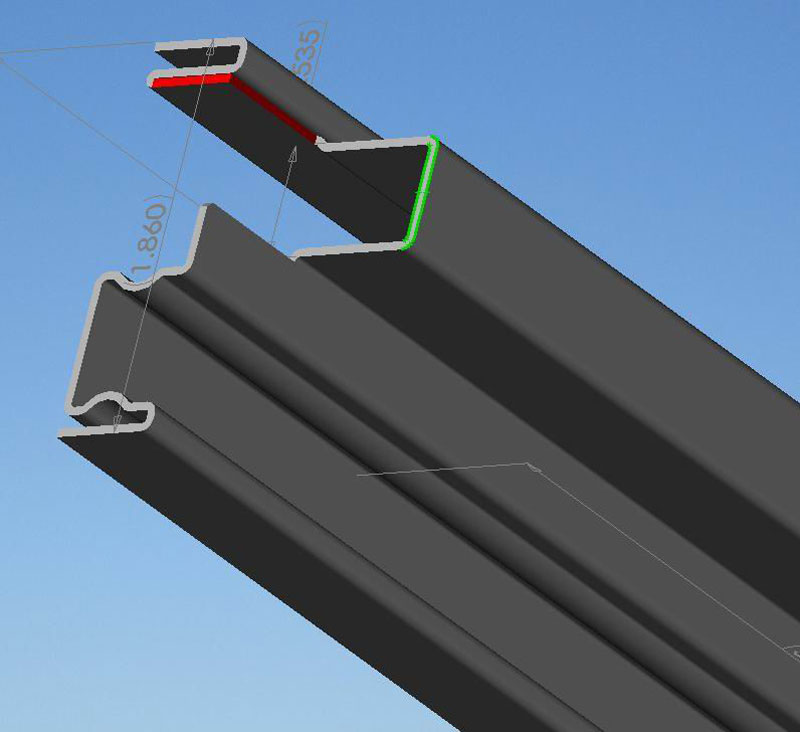

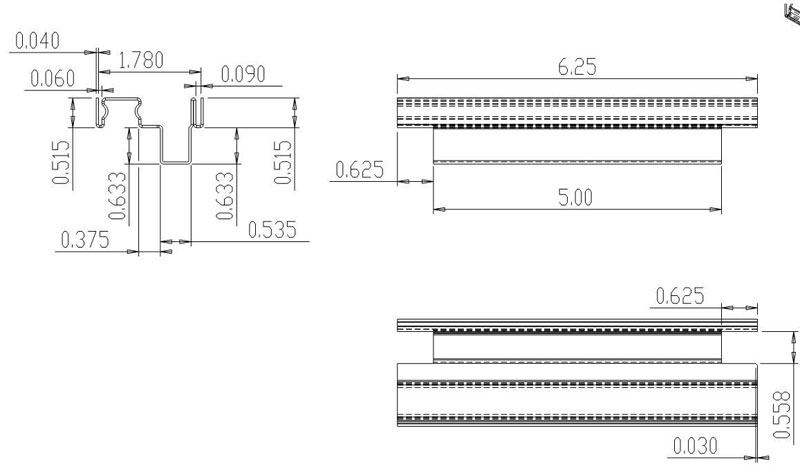

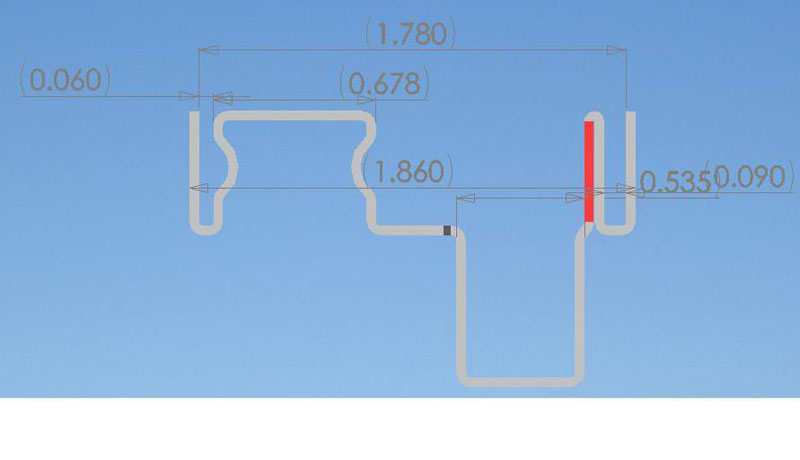

Panel Shape	As profile drawing and customer’s requirements
Operator	needed 1-2 persons
Power Supply	220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment Weight	about 18t
Dimension	(LWH) about 2532m
LOADING SIZE	Normally need 2 x 40′ container.
Equipment Color	normally Blue/White, or as requests;
Place of Origin	Zhejiang, China (Mainland)
Packing	Standard and careful export packing
