Features and Advantages of Door Frame Roll Forming Machine
- It is possible to choose the ground pit/overground accumulating units, non-stop hole punching units, and flying tracking cutting and automatic stacking devices to further improve the production speed of our steel door frame manufacturing machines greatly.
- Cassette-type platform and quick-change Machine base for multi-profile purposes are available for choice.
- With fully automatic non-stop standard configurations, the door frame-making machine can reach the production speed of 30 m/min
Suitable Coil Sheet Material for Door Frame Forming Machine
Suitable material: Cold/hot Rolled Steel, Galvanized Steel
Thickness: 0.8-1.3/1.0-1.6/1.5-2.0 (mm)
Yield Strength: 230-300 (MPa)
Width: as profile requests
Production Line Components and Parameters of Door Frame Forming Machine
| Decoiler | 3t/5t/8t |
| leveling device | |
| Ground pit/ overground accumulating unit | (optional) |
| Servo Feeding Device | |
| Holes punching device | |
| Ground pit/ overground accumulating unit | (optional) |
| Guiding device | |

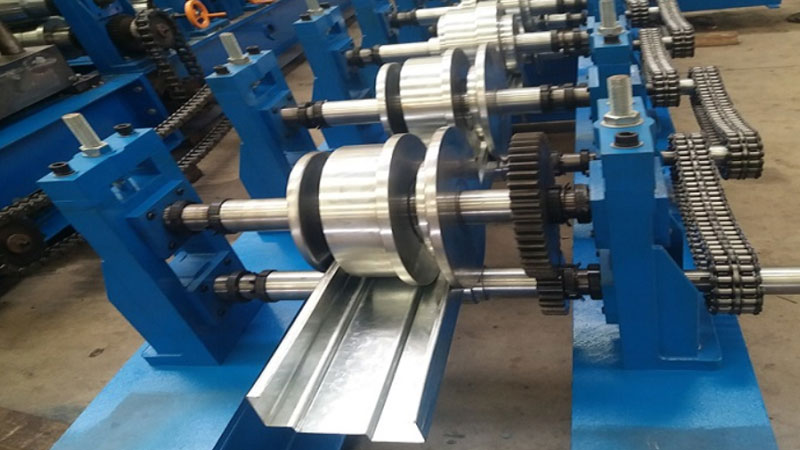

| Roll forming system | 20/30m/min |

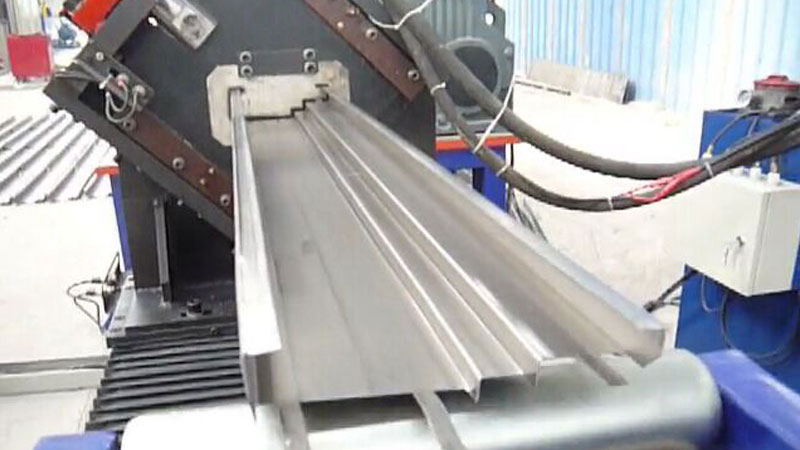

| Post cutting device | flying cutting, tracking cutting and stop to cut are available for choice |
| Output System | Manual supporter/ Automatic Stacker (optional) |
| Stack Master | (Output direction) Lateral/Longitudinal (optional) |
| Hydraulic system | Power supply for holes punching /post-cutting system |
| Electric control system | MITSUBISH/ SIEMENSE/AMS/Omron (optional or as requested) |

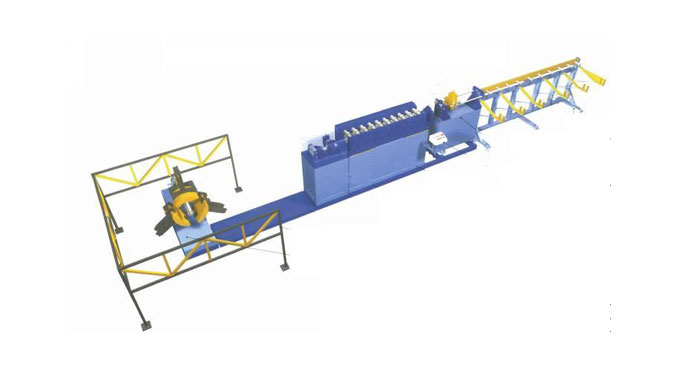

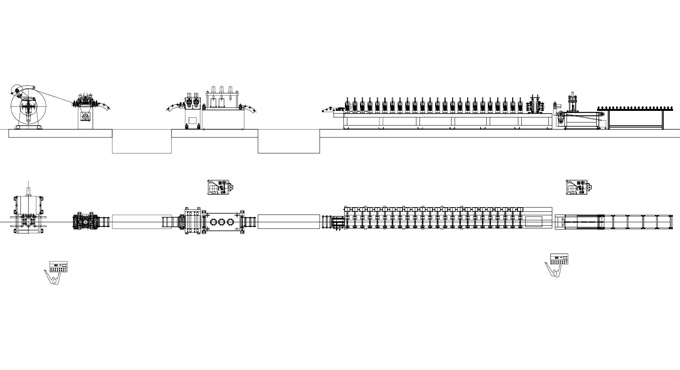

The Working Flow of Door Frame Making Machine
Hollow Metal Frame Installation

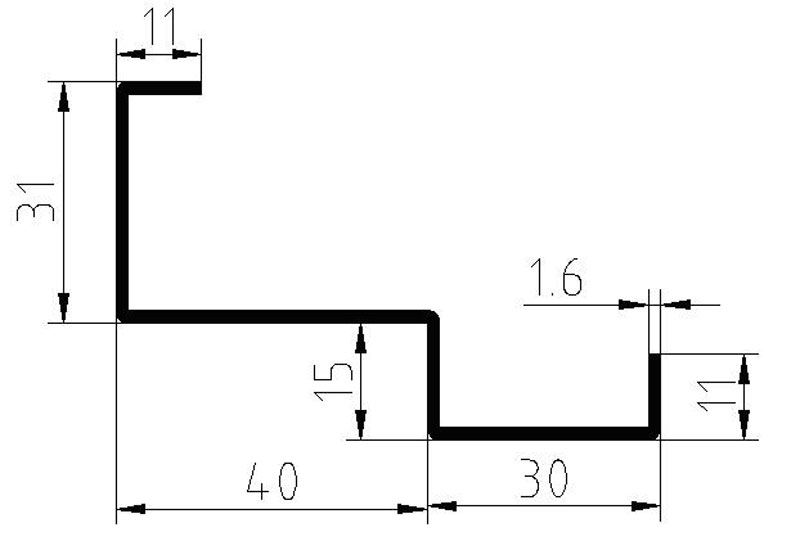

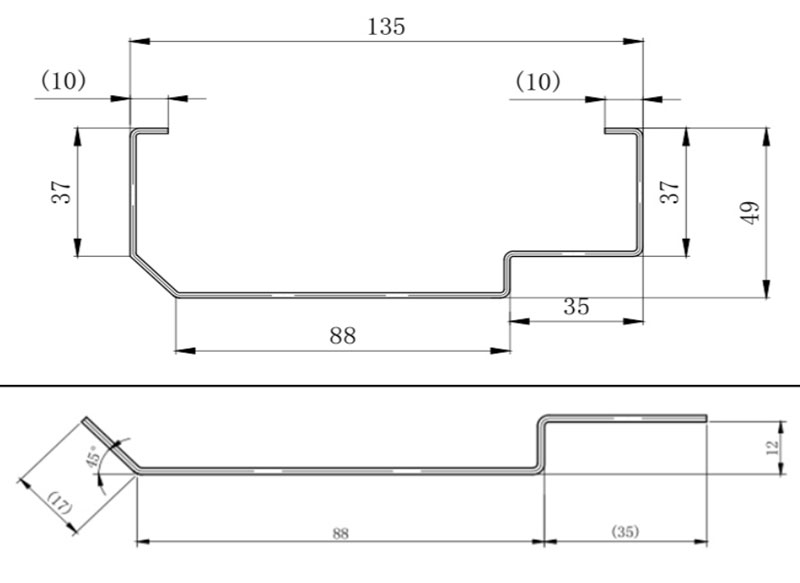

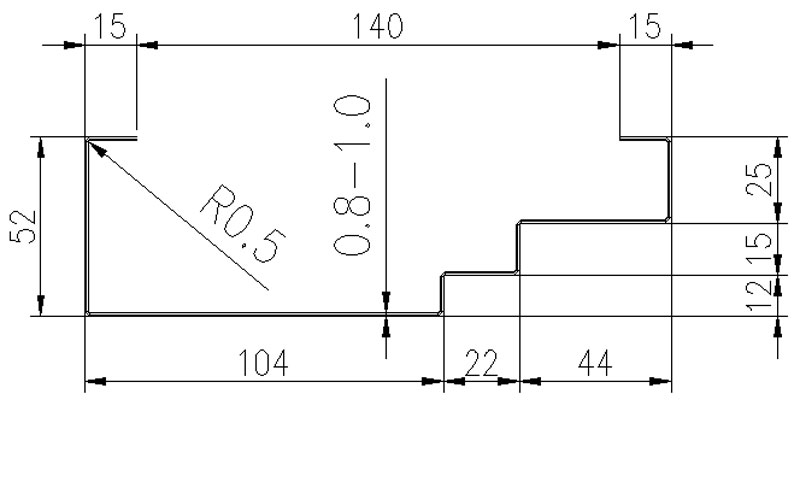

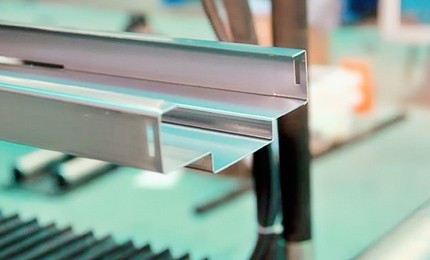

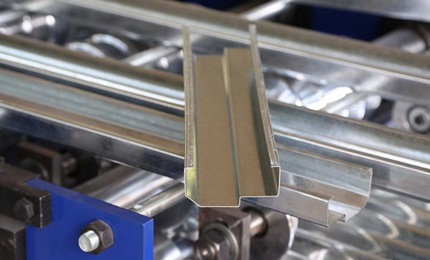

Steel Door Frame Profiles

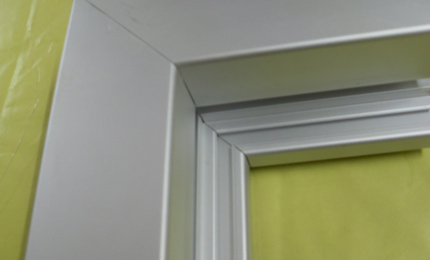

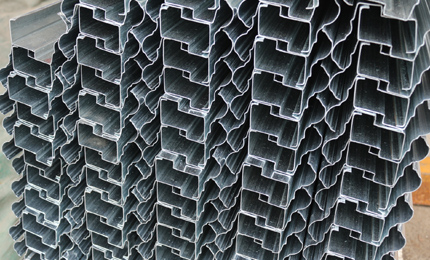

Finished Steel Door Frames by Door Frame Forming Machine
Specification of Door Frame Forming Machine
| Machine Condition | Fully New, A-Grade quality |
| Panel Shape | As profile drawing and customer’s requirements |
| Operator | needed 1-2 persons |
| Power Supply | 220V/380V/415V/460V, 50/60Hz, 3P (as requests) |
| Equipment Weight | About 15t |
| Dimension | (L*W*H) about 25*3*2m |
| LOADING SIZE | Normally need 2 x 40′ container. |
| Equipment Color | Normally Blue/White, or as requests; |
| Place of Origin | China (Mainland) |
| Packing | Standard and careful export packing |
