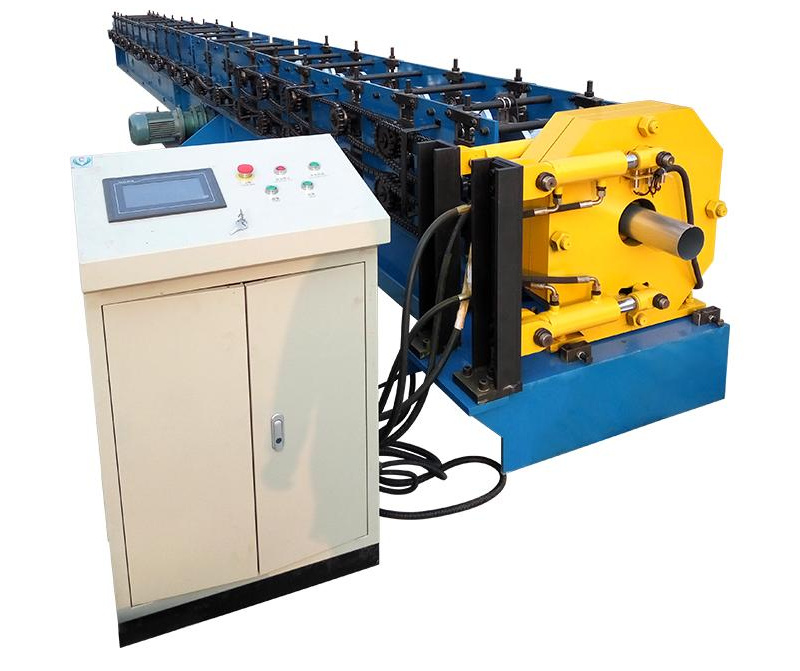

Metal Drain Pipe Downspout Roll Forming Machine

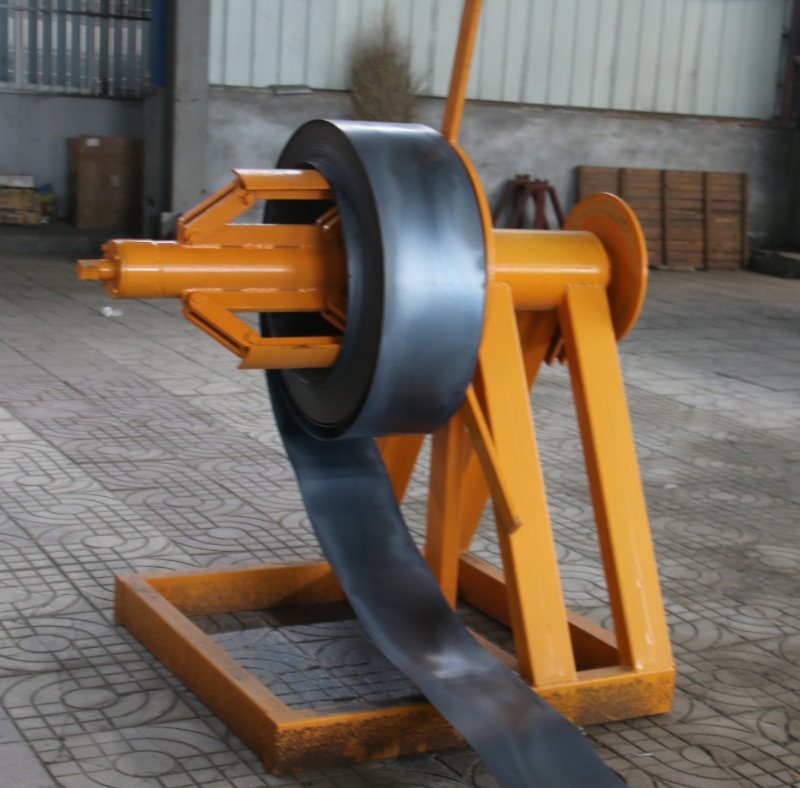

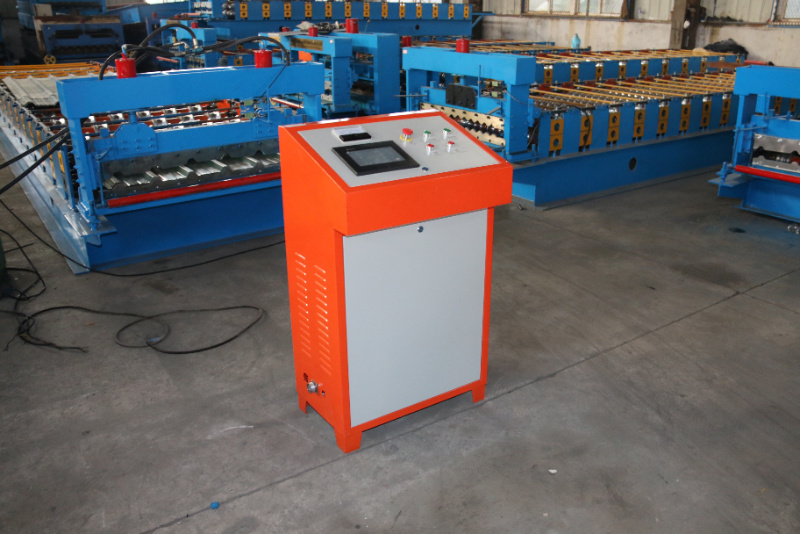

Metal Drain Pipe Downspout Roll Forming Machine/ rain Spout Elbow Making Machine/ Used Rain Gutter Machine,whole line consist manual decoiler,main forming machine,control box,hydraulic pump and run out table

1.The whole line working speed is about 10m/min.,max working speed could be 15 meters per minute.
2.Feeding material width should be confirmed before machine design .the width are changeable,
3.Material thickness normal range are 0.3-0.8mm.if you have any special request on material thickness,we should discuss in advance .
4.Both three and four waves are suitable for the line.we can design the machine based on buyer’s profile drawing
5.Final sheet embossing is avaliable.we can different embossing rollers on various pattern and drawings.
6.Pre-cutting are provided as you want.

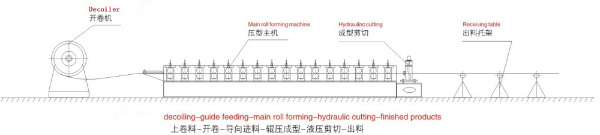

1.The chart of process flow:

2.Main equipment:

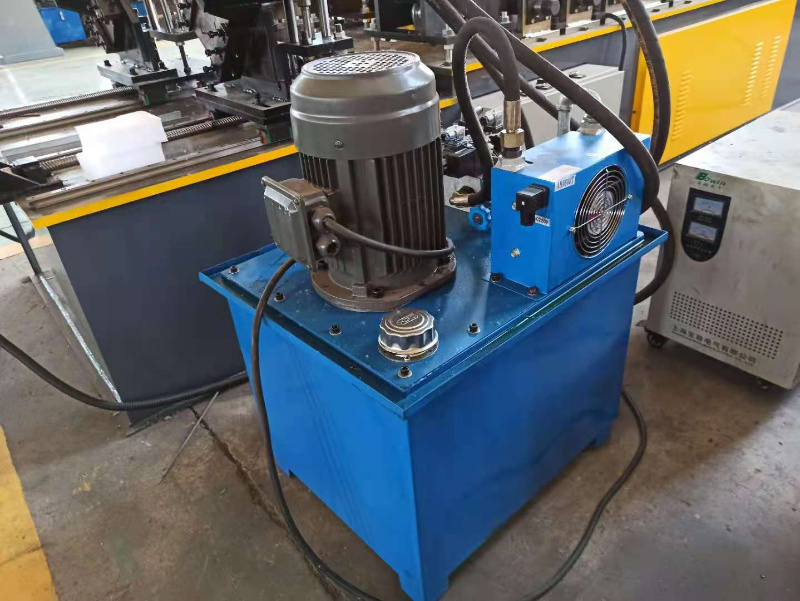

5)hydraulic system

A.advanced hydraulic system from taiwan

B.Power:3kw
